Transformer Insulating Oil testerCurrent Location:Home > PRODUCTS

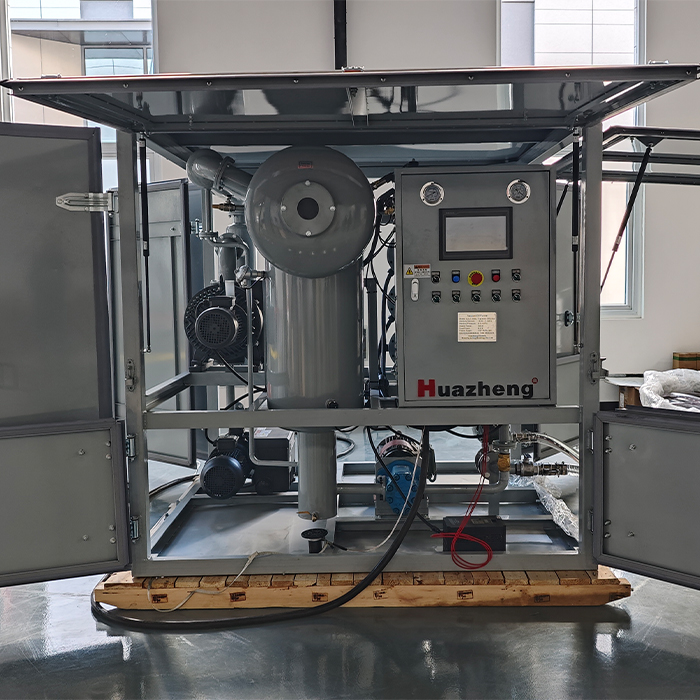

double stage vacuum dehydration transformer oil purification systems


I Parameter

Nominal flow:12000L/h

Net oil capacity:200L/min

Air extraction rate:1080M3/h

Working pressure:0.4Mpa

Working oil temperature:40~70°C

Working power:50Hz 380V three-phase three-wire

Heating power:135Kw (adjustable)

Total Work rate:150kw

Operating noise:£75dB (A)

Pipe diameter of inlet/outlet:58/58mm

Shape Size:195×185×215cm

Weight of equipment:1850Kg

II. Product net oil indicators

Oil to be treated

 1 breakdown voltage 70kv.

2 moisture 5 ppm.

3 Filtering accuracy 1μ
